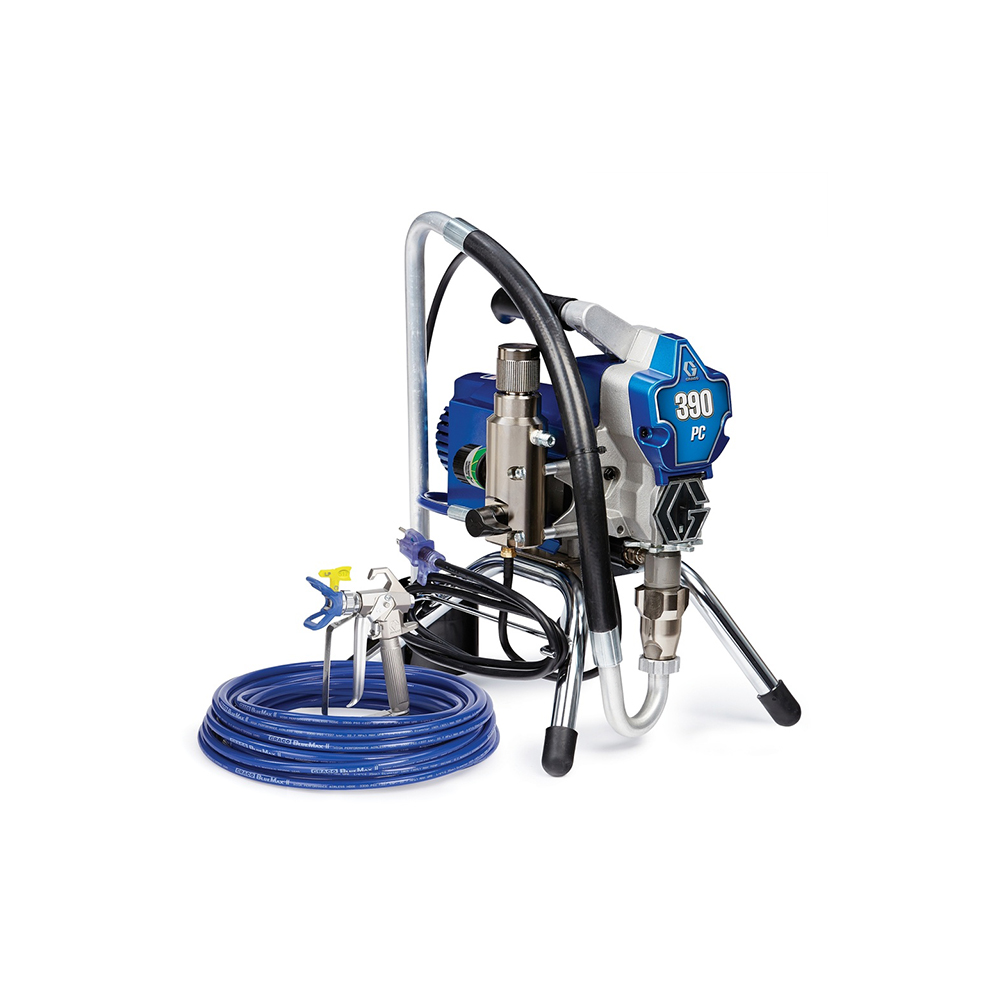

Airless Sprayer 390 Stand -110
Part code: 17C310
The 390 PC Stand is a sturdy workhorse built for the professional who is just getting started. Lightweight and portable, it’s easy to lift and transport. The 390 PC model is the ideal sprayer for residential jobs and offers the best value in small electric sprayers...
Do you have questions about this product?
Are you evaluating our products and need advice before making a purchase?
Features:
The 390 PC Stand is a solid workhorse built for the professional who is just getting started. Lightweight and portable, it is easy to lift and transport. The 390 PC model is the ideal sprayer for residential jobs and offers the best value in small electric sprayers.
The ideal sprayer for residential jobs and the best value in small electric sprayers.
- Durable Endurance Chromex piston pump
- Lasts twice as long as the next leading brand
- Long-lasting V-Max Blue seals, Chromex stem, and hardened stainless steel cylinder
- Faster cleaning with the QuikAccess intake valve
- Advantage impeller
- The most durable transmission
- Hardened steel gears provide extremely quiet operation and a lifetime warranty
- One-piece ProConnect pump replacement system
- Eliminate costly downtime
- Pump changes in minutes – no tools, pins, or parts to lose
- Easy Out pump filter
- Easy maintenance and fewer clogs
- The exclusive inside-out filtering process ensures a quality finish
- Robust steel frame
- Thick chrome plating over steel withstands harsh environments
- The 4-leg stand provides greater stability
- Variable pressure control
- The position indicator allows for repeatable adjustment
- Swivel inlet suction hose
- Easily reaches paint buckets
- Contractor FTx airless spray gun
- Standard features
- Economical option for daily use
- Available with 2- or 4-finger trigger
Technical Specifications
Total height (cm):
47
Total height (mm):
470
Total width (cm):
35.6
Total width (mm):
356
Compatible replacement pump:
17C487
Features:
- Endurance Chromex pump
- Advantage impeller
- ProConnect
- Easy Out filter
Maximum flow rate (L/min):
1,8
Cycles per gallon:
700
Configuración del marco:
Stand
Phase :
1
Paint outlet filter:
60 mesh stainless steel strainer
Power source:
Electric
Includes :
- FTx gun
- RAC X LTX 515 spray tip
- RAC X guard
- 1/4-inch x 50-foot BlueMax II airless hose
- TSL 4 oz
Total length (cm):
40.6
Total length (mm):
406
Compatible material:
Acrylics, enamels, lacquer, latex, stains
Pump sleeve material:
Tempered steel
Wet material:
- Acetal
- Aluminum
- Fluoroelastomer
- Leather
- Nylon
- PTFE
- Polyethylene
- Stainless steel
- Tungsten carbide
- UHMWPE
- Urethane
- Galvanized carbon steel
- Nickel-plated carbon steel
Sound power level (dB(A)):
100
Sound pressure level (dB(A)):
90
Maximum sound pressure level (dB(A)):
90
Number of guns:
1
Weight (kg):
15
Minimum generator power (W):
3000
Rated power (W):
466
Rated power (kW):
0.47
Maximum working pressure (MPa):
22.8
Maximum working pressure (bar):
3300
Maximum working pressure (bar):
22800
Maximum working pressure (bar):
228
Serie:
390 PC
Fluid outlet size (mm):
6.35
Fluid outlet size (inches):
1/4
Maximum tip size (inches):
0.021
Type:
Airless sprayer
Pump type:
Endurance pump
Pump mounting type:
ProConnect
Motor type:
CC
Fluid outlet thread type:
NPSM
Pump rod type:
Chromex
Voltage (V):
120
